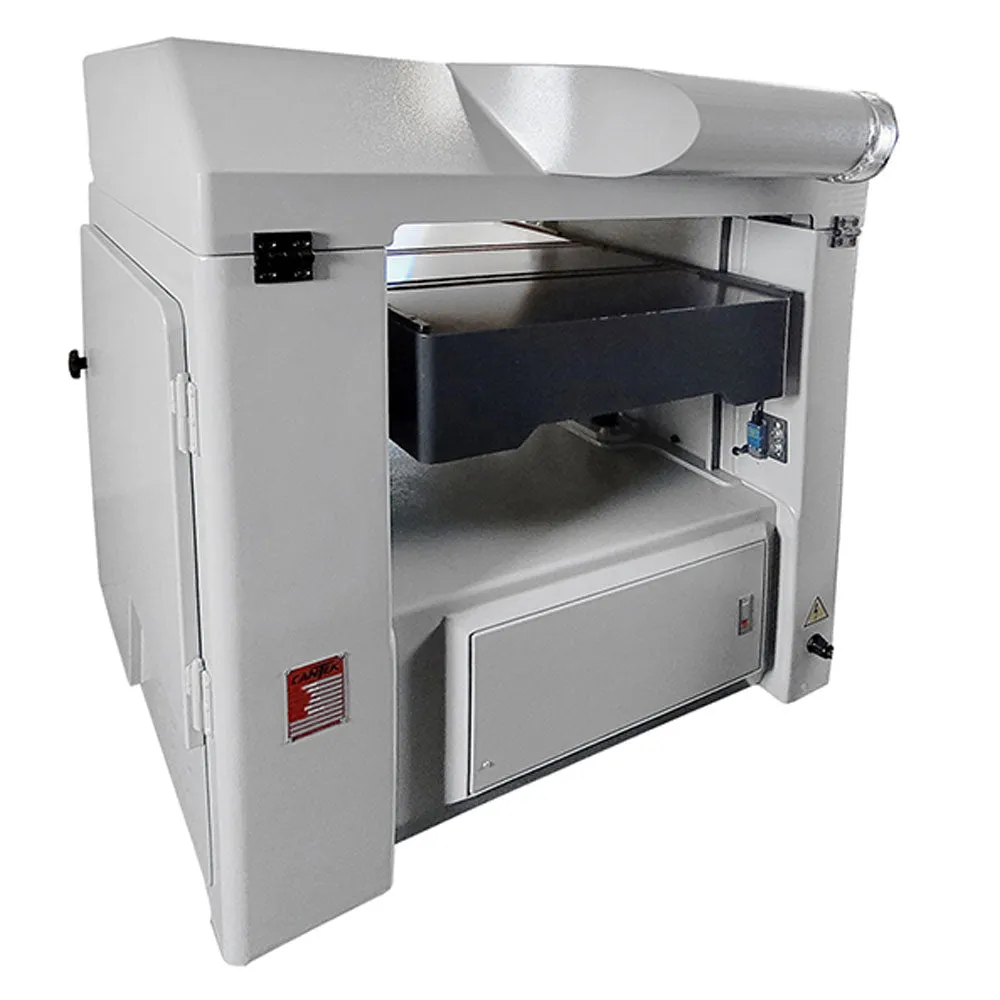

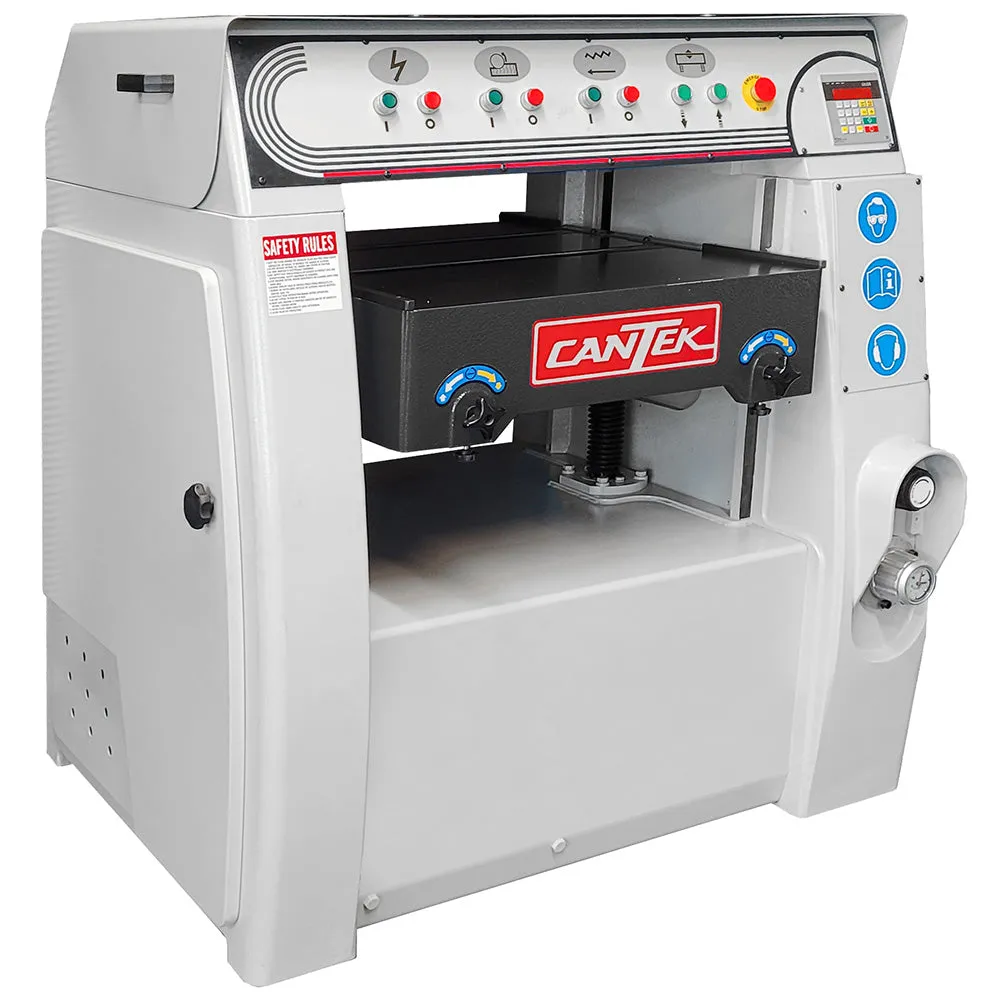

The Cantek CM626 26″ Planer is a production planer with high horsepower and feed rates. It is equipped with a spiral insert knife cutterhead with two-sided replaceable knives which produce a smooth planed finish with maximum cutting depth. The spiral pattern reduces the load on the motor and bearings, is extremely quiet, has superior stock removal, and produces a superior finish. With upper and lower driven feed rollers, the CM626 can plane even the most difficult-to-feed material.

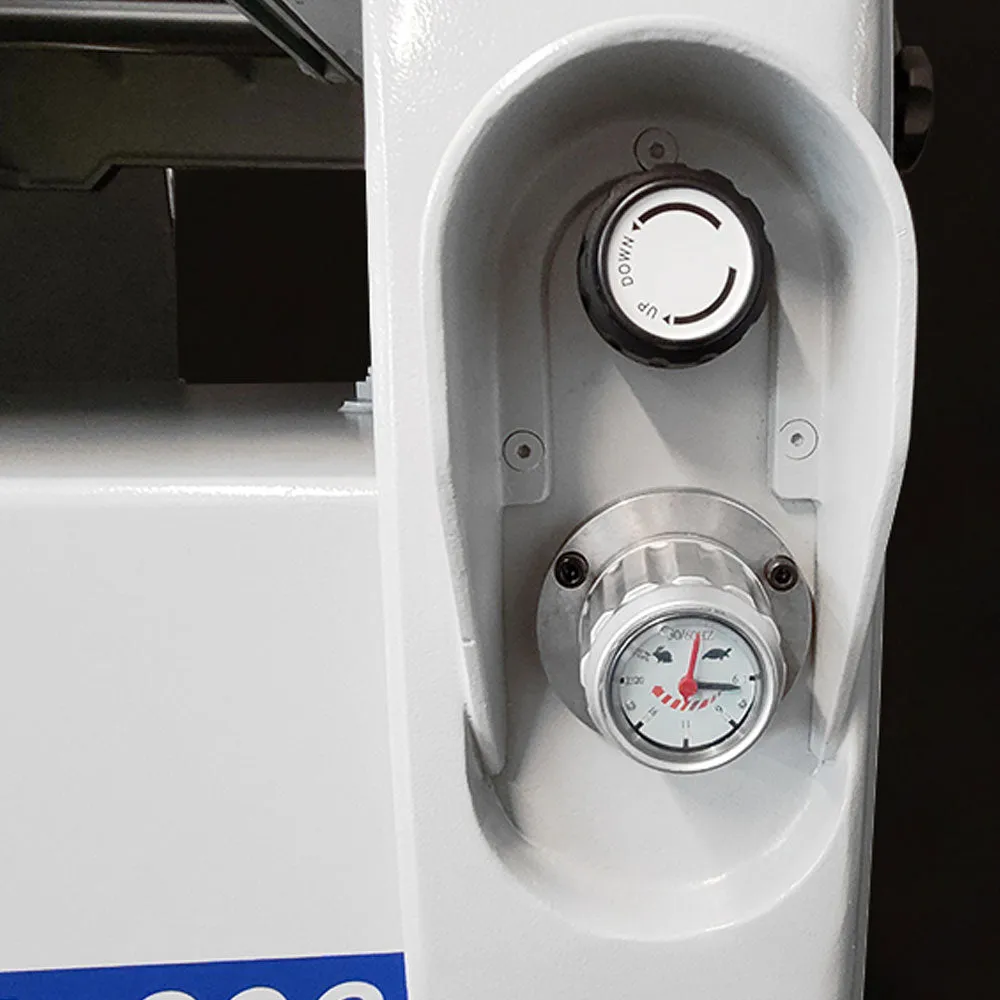

The powerful 20HP motor can ensure optimum stock removal even on full-width boards. With infinitely variable feeds the operator has full control to ensure the optimum feed speed according to your needs. Equipped with the motorized movement of the table by convenient digital control the operator can accurately input the desired thickness to achieve accurate results.
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email [email protected]
Note: Cannot ship to Pennsylvania or California.
[TABS]
Features
- Spiral insert knife cutterhead with superior cut quality and a maximum depth of cut
- Two-sided solid carbide inserts are easily changed while providing optimum wear life
- Heavy-duty cast iron machine frame ensures long machine life, and optimum cut quality with its superior vibrating damping properties
- Driven bed rollers for optimum feeding results even with difficult-to-feed material
- Powerful 20HP cutterhead motor for even the most demanding planing jobs

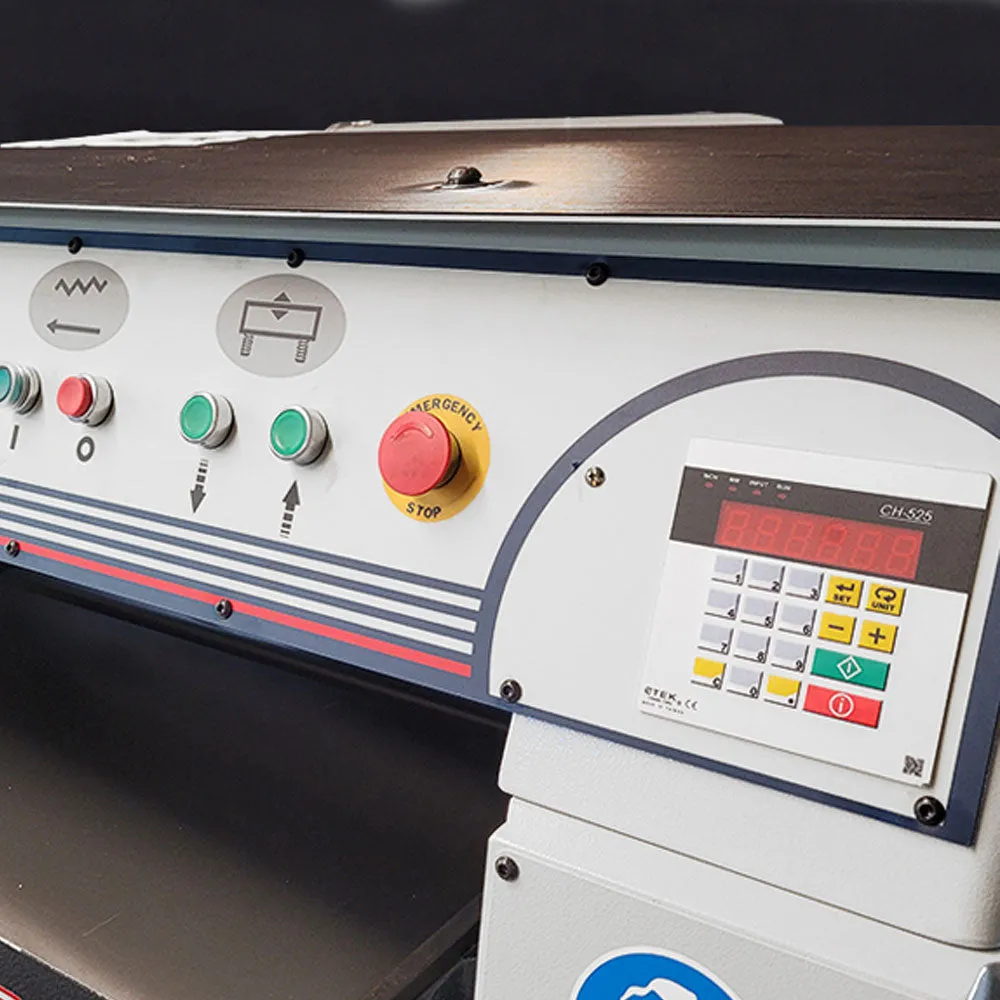

- Digital thickness control for accurate automatic adjustment of the table position

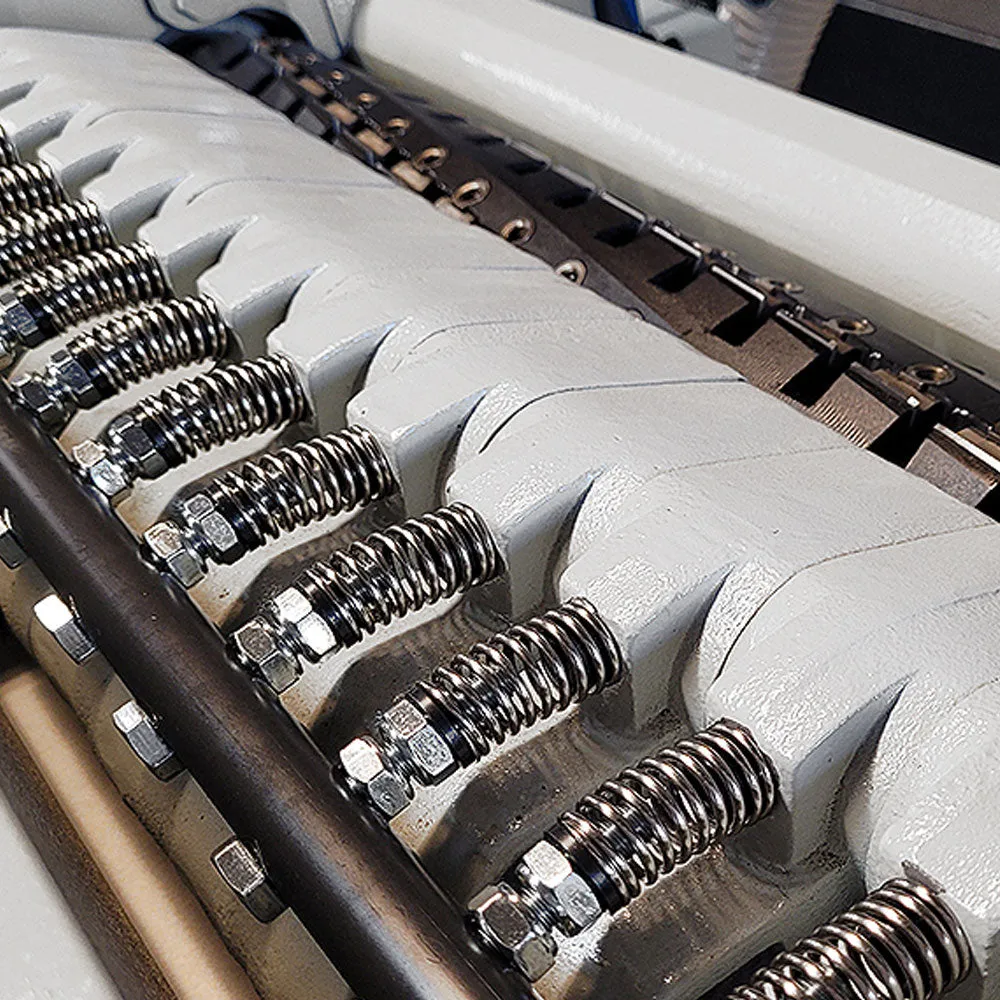

- Serrated sectional infeed roll, sectional chip breakers and pressure shoes

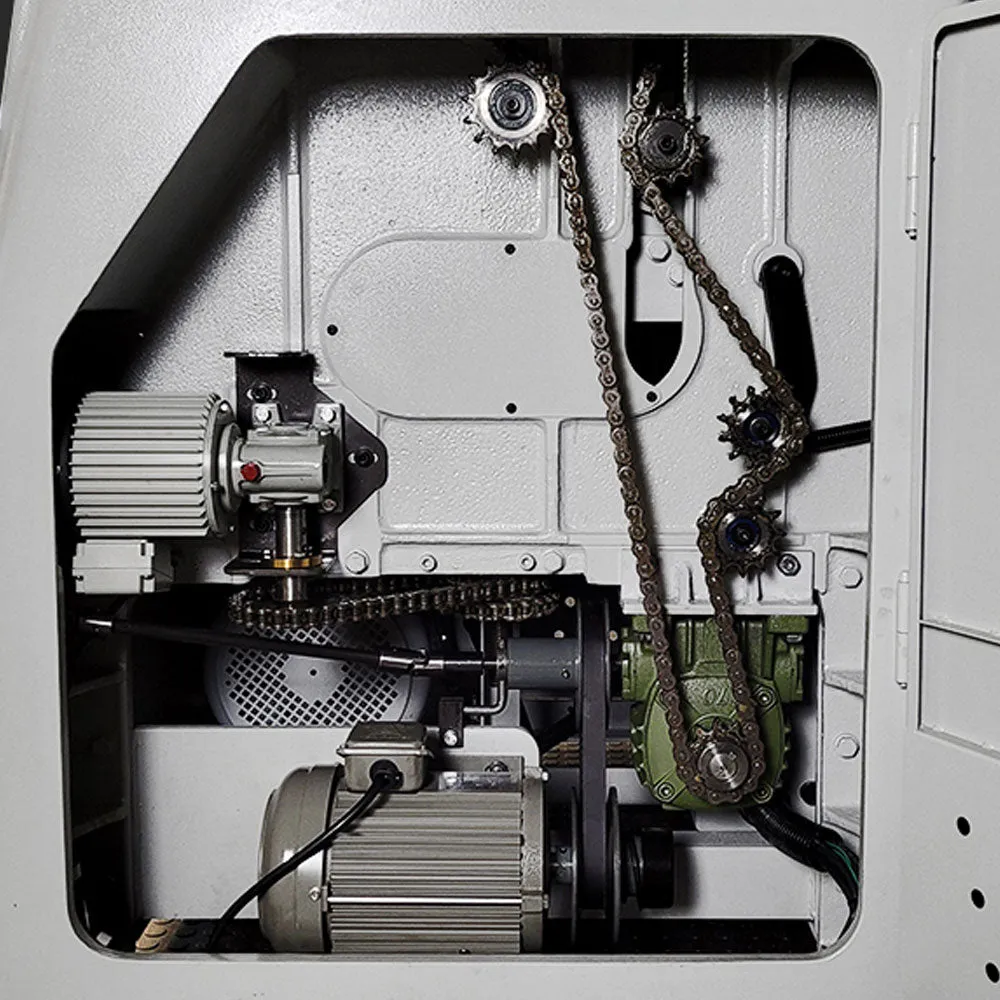

- Driven opposing upper and lower feed rollers for optimum feeding results
- Variable feed speed to 70 FPM

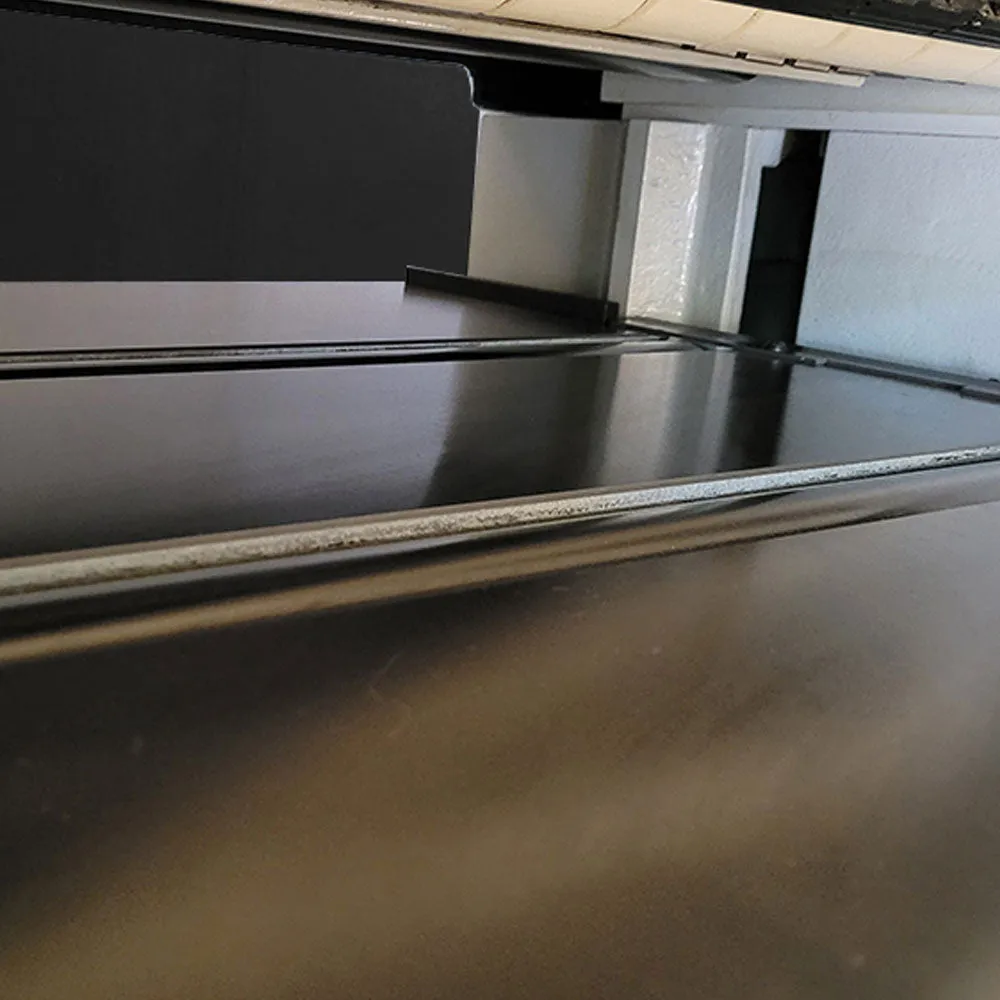

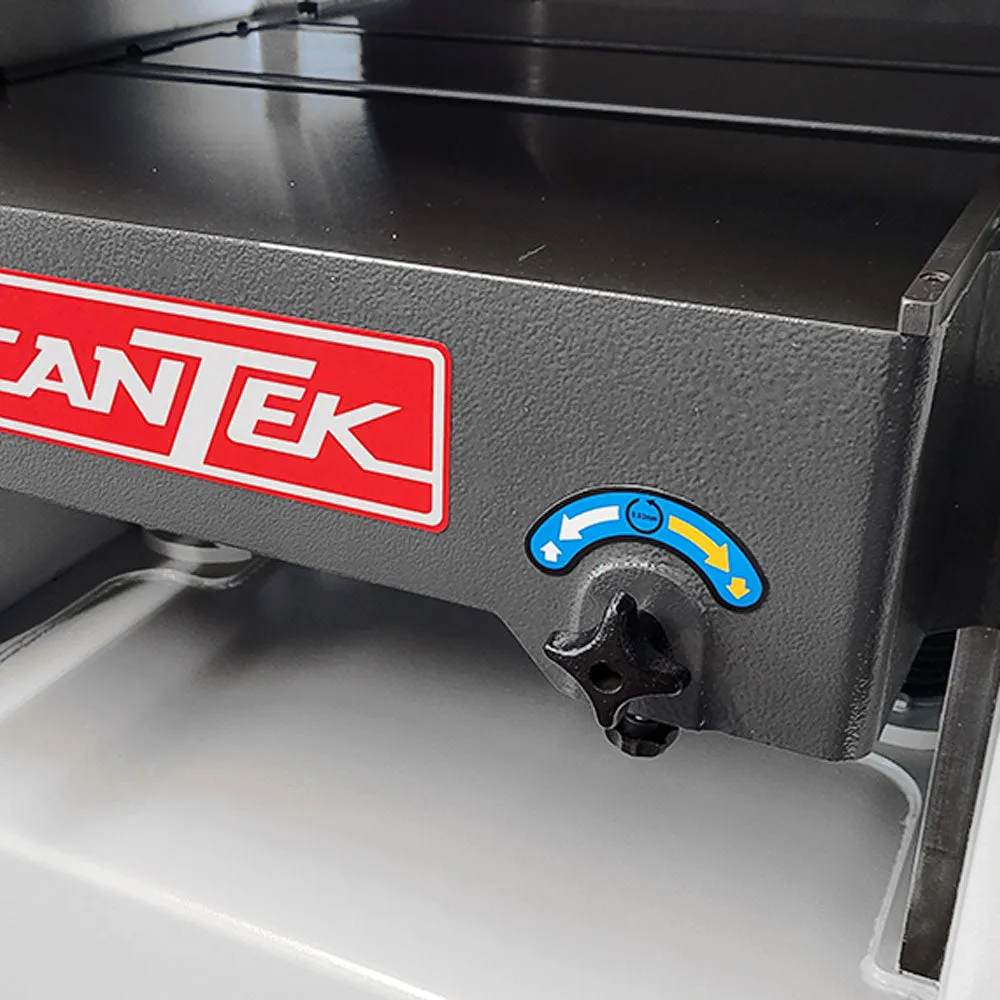

- Adjustable bed rollers to assist feeding results when required
- Anti-kickback fingers ensure safe operation
- Heavy-duty elevation jack screws and precision machined slides for accurate and smooth table movement
- Sound dampening machine cover conveniently hinges to provide easy access to the planer head and feed assembly
- 6” dust port
Specs
Max. planing width: 26″ (660 mm)
Max. planing thickness: 11.8″ (300 mm)
Min. planning thickness: 0.15″ (4 mm)
Max. depth of cut: 0.31″ (8 mm)
Min. planning length: 10.35″ (263 mm)
Table area: 35″ x 27″ (900 x 690 mm)
Feed speeds variable: 23~98 FPM (7~30m/min)
Main motor: 20hp
Feed motor: 1hp
Table motor: 1/2hp
Knives: 30 x 12 x 1.5mm (QTY: 100)
Cutterhead diameter: 4-3/4” (120 mm)
Cutterhead RPM: 5,000 RPM
Top feed rollers: 3″ dia. (75 mm)
Dust hood outlet: 6″ dia. (150 mm)
Machine weight: 2,200 lbs.
Machine dimensions (W x D x H): 46″ x 39″ x 49″
Shipping weight: 2,420 lbs.
Shipping dimensions (L x W x H): 44″ x 52″ x 58″
